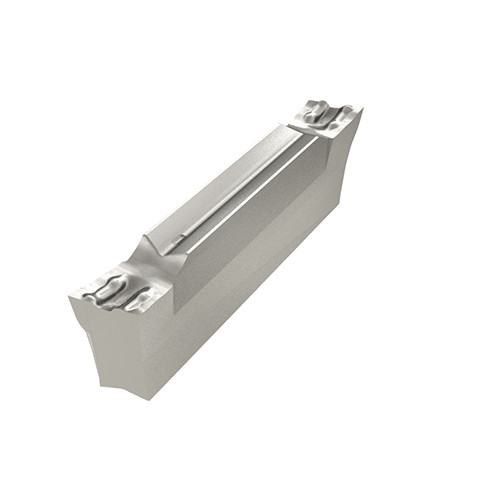

DGR 3000ZS-15D IC908
A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The tight chipformer ensures short, deformed chips.
Price: Log in For Price

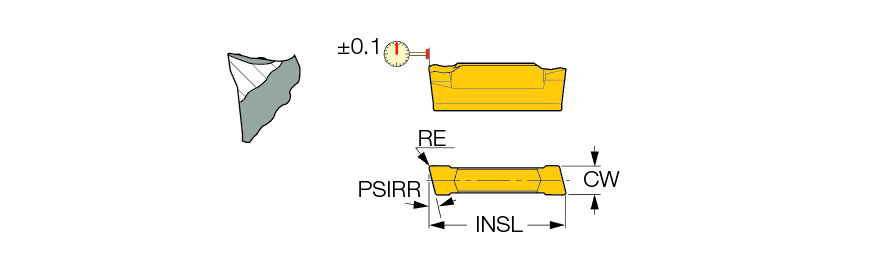

| Cutting Width (CW) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.02 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Overall Length (OAL) | 20.4 mm | Min. Grooving Feed (fg(min)) | 0.03 mm/rev |
| Cutting Depth Maximum (CDX) | 18 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Parting | |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The tight chipformer ensures short, deformed chips. | FamilyName | DGR-Z/ZS |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0052
Name
Parting Off Indexable Inserts
FamilyName
DGR-Z/ZS
BrandName
Iscar
