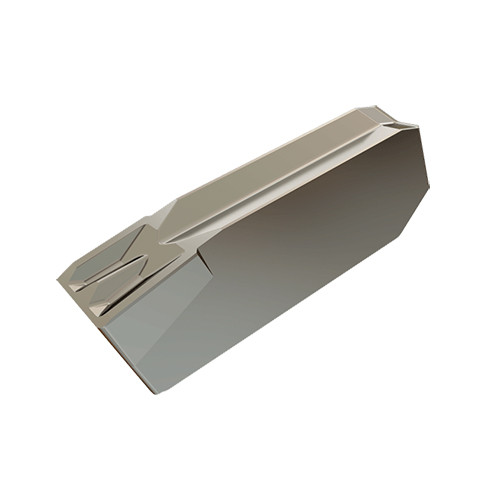

GIM 3-8RA IC354
Parting, single-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Most efficient on alloy steel.
Price: Log in For Price

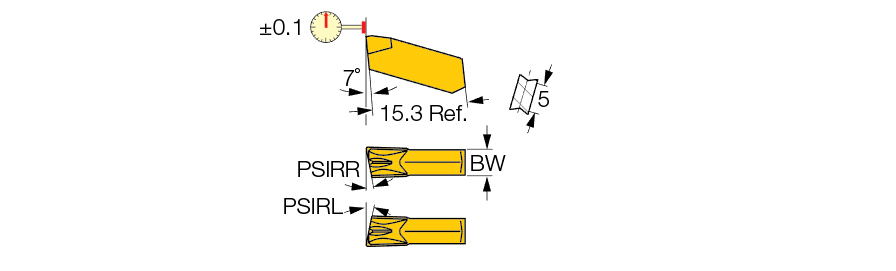

| Cutting Width (CW) | 3 mm | Max. Grooving Feed (fg(max)) | 0.16 mm/rev |
| Corner Radius (RE) | 0.25 mm | Min. Grooving Feed (fg(min)) | 0.08 mm/rev |
| Overall Length (OAL) | 15.3 mm | Chip Breaker Type | W |
| Insert Length (INSL) | 15.3 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC354 | Cutting Edge Angle Major Right Hand (PSIRR) | 8 Degrees |
| Cutting Direction (HAND) | Right Hand | Cutting Width Tolerance (+/-) (CWTOL) | 0.05 mm |
| Application | | Parting | Slitting | | Insert Width (W1) | 2.4 mm |
| Applicable Material | | Steel | Stainless Steel | | Unit | M |
Product Features
| Family Description | Parting, single-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Most efficient on alloy steel. | FamilyName | GIM-W-RA/LA |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0021
Name
Parting Off Indexable Inserts
FamilyName
GIM-W-RA/LA
BrandName
Iscar
