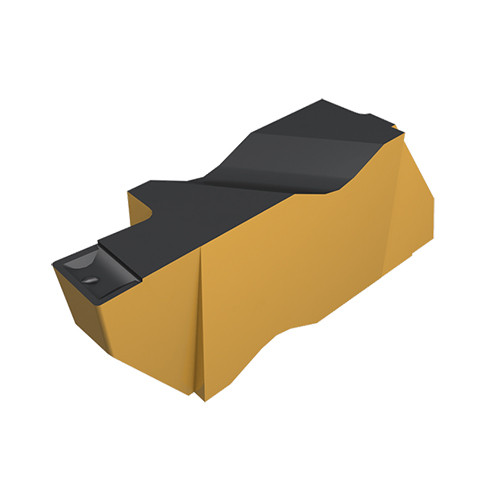

ING4189LCB (4.80) IC907
Double-ended precision grooving inserts with a chipformer.
Price: Log in For Price

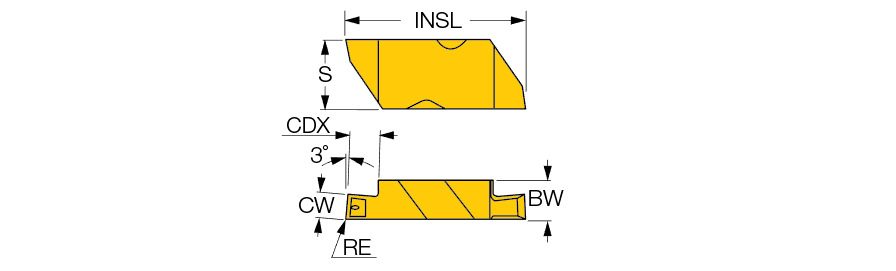

| Cutting Width (CW) | 4.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.57 mm | Max. Grooving Feed (fg(max)) | 0.22 mm/rev |
| Insert Thickness (S) | 11.51 mm | Min. Grooving Feed (fg(min)) | 0.12 mm/rev |
| Insert Length (INSL) | 28.45 mm | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Cutting Width Tolerance (+/-) (CWTOL) | 0.025 mm |
| Grade | IC907 | Insert Width (W1) | 6.48 mm |
| Application | | Ext. Grooving | Int. Grooving | | Unit | M |
Product Features
| Family Description | Double-ended precision grooving inserts with a chipformer. | FamilyName | ING-RCB/LCB |
| Remarks | DMIN according to related boring bar. | BrandName | Iscar |
| COO | USA |
Shipping Info
Weight per item
0.0244
Name
Parting Off Indexable Inserts
FamilyName
ING-RCB/LCB
BrandName
Iscar
