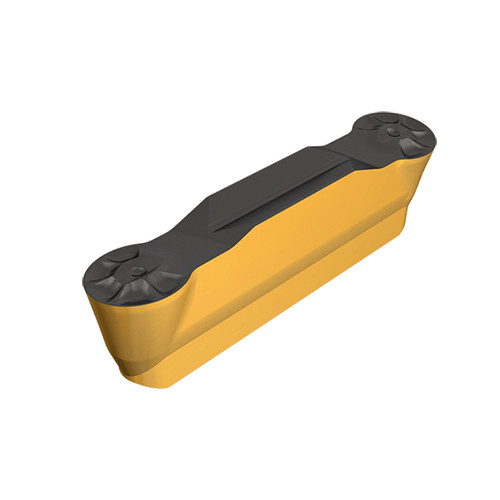

GRIP 3015Y IC908

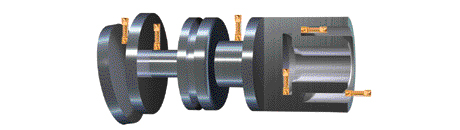

Full radius double-ended inserts, for turning and grooving in external, internal and face applications.

Price: Log in For Price

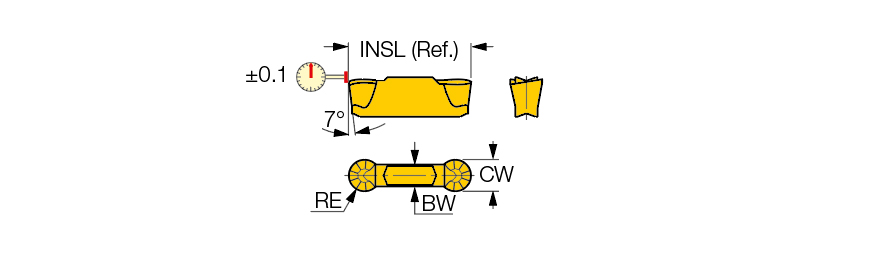

Cutting Width (CW) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Corner Radius (RE) | 1.5 mm | Axial Groove Outside Diameter Minimum (DAXN) | 0 mm |
Clearance Angle Major (AN) | 7 Degrees | Number of Teeth | 2 |
Insert Length (INSL) | 15.8 mm | Measurement Type | Metric |
Coating | TiAlN | Tool Type | Groove-Turn Utility Inserts |
Grade | IC908 | Body Material | Carbide |
Cutting Edge Material | Carbide | Unit | M |
Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |

Product Features
Family Description | Full radius double-ended inserts, for turning and grooving in external, internal and face applications. | FamilyName | GRIP (full radius) |
COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0027
Name
Groove/Turn Indexable Inserts
FamilyName
GRIP (full radius)
BrandName
Iscar
