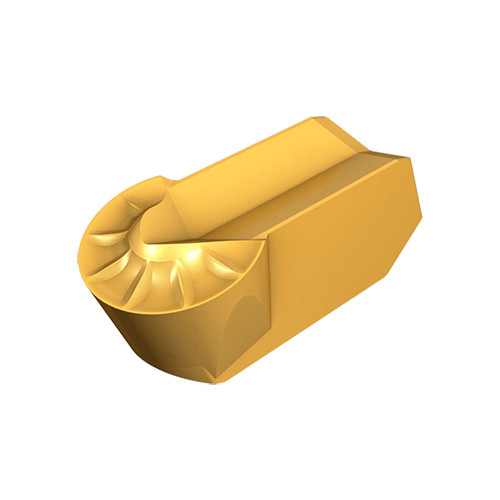

GIMY 315 IC20
Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. The full-radius inserts can cut arcs to 250°.
Price: Log in For Price

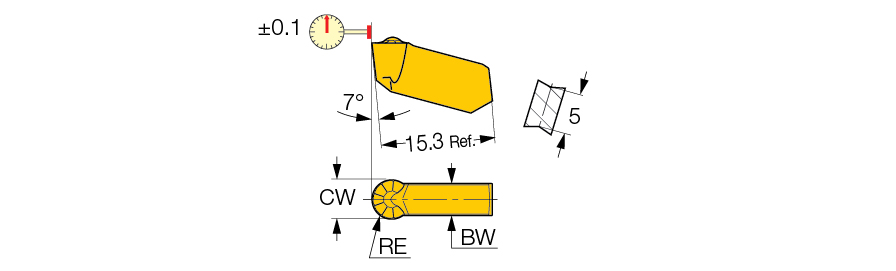

| Cutting Width (CW) | 3 mm | Application | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 1.5 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | Y |
| Insert Length (INSL) | 15.3 mm | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Minimum Bore Diameter (DMIN) | 70 mm | Measurement Type | Metric |
| Coating | Uncoated | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC20 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. The full-radius inserts can cut arcs to 250°. | FamilyName | GIMY (full radius) |
| Remarks | DMIN for internal application=70 mm Can cut arcs to 250° | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0096
Name
Groove/Turn Indexable Inserts
FamilyName
GIMY (full radius)
BrandName
Iscar
