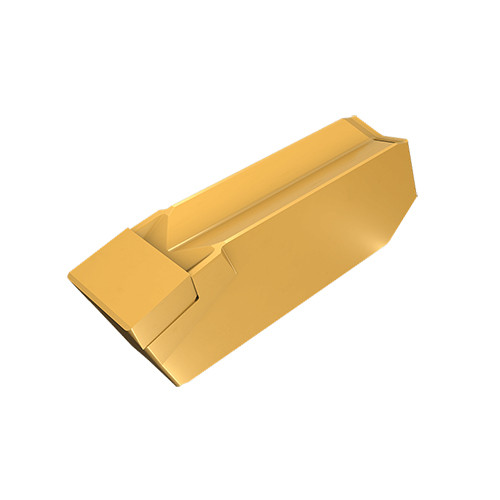

GITM 3.00K-0.20 IB10H
CBN inserts for turning and grooving on hard ferrous materials. Used for finishing hard ferrous materials with 45-65 HRc, dry cutting recommended for interrupted cut.
Price: Log in For Price

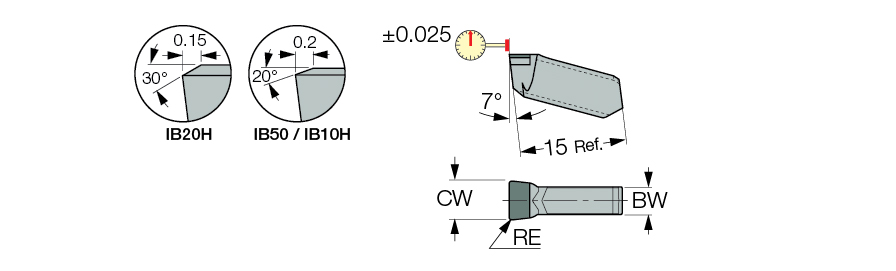

| Cutting Width (CW) | 3 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Hard Materials | |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | K |
| Insert Length (INSL) | 15 mm | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Minimum Bore Diameter (DMIN) | 70 mm | Measurement Type | Metric |
| Coating | Uncoated | Tool Type | Groove Turn Ultra hard Inserts |
| Grade | IB10H | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
Product Features
| Family Description | CBN inserts for turning and grooving on hard ferrous materials. Used for finishing hard ferrous materials with 45-65 HRc, dry cutting recommended for interrupted cut. | FamilyName | GITM |
| Remarks | DMIN for internal machining = 70 mm | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.0080
Name
Groove/Turn Indexable Inserts
FamilyName
GITM
BrandName
Iscar
