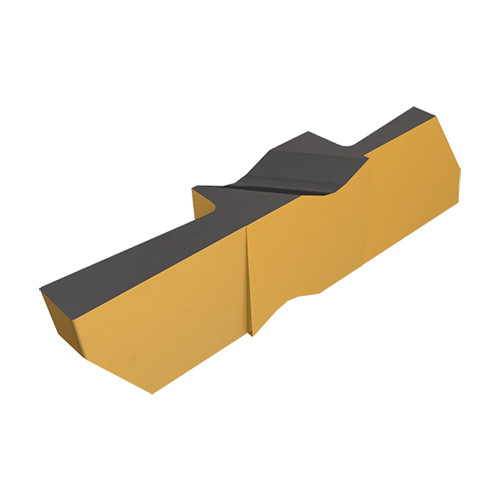

INGT3125R (3.18) IC907
Precision, double-ended flat top deep grooving inserts.
Price: Log in For Price

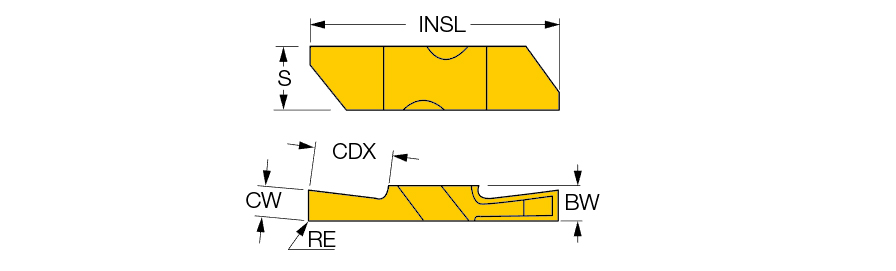

| Cutting Width (CW) | 3.18 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.19 mm | Application | | Ext. Grooving | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 11.1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 8.74 mm | Measurement Type | Metric |
| Insert Length (INSL) | 34.8 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
Product Features
| Family Description | Precision, double-ended flat top deep grooving inserts. | FamilyName | INGT-R/L |
| Remarks | DMIN according to related boring bar | BrandName | Iscar |
| COO | USA |
Shipping Info
Weight per item
0.0153
Name
Groove/Turn Indexable Inserts
FamilyName
INGT-R/L
BrandName
Iscar
