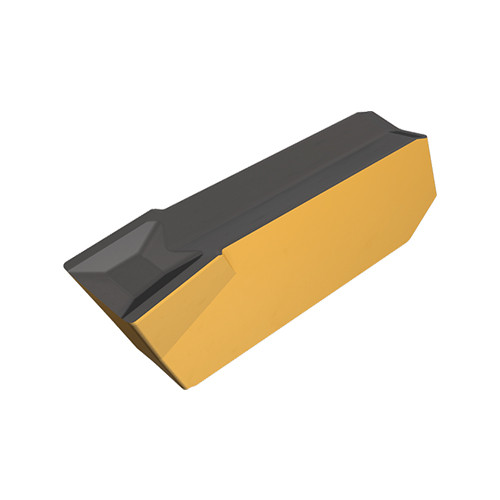

GIMF 406 IC907
Utility single ended grooving and turning inserts with F/Y-type chipformers. Used for deep machining at low to medium feeds.
Price: Log in For Price

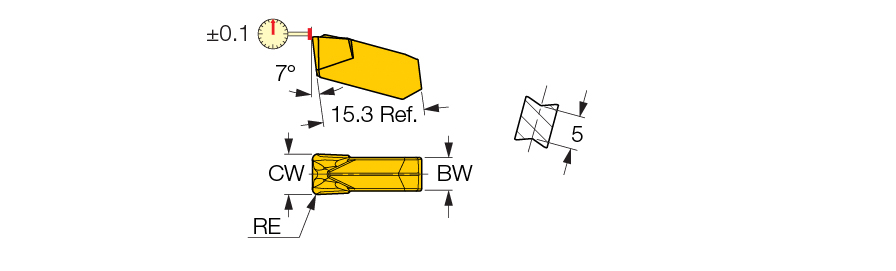

| Cutting Width (CW) | 4 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | FT |
| Insert Length (INSL) | 15.3 mm | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Minimum Bore Diameter (DMIN) | 70 mm | Measurement Type | Metric |
| Coating | TiAlN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC907 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Utility single ended grooving and turning inserts with F/Y-type chipformers. Used for deep machining at low to medium feeds. | FamilyName | GIMF |
| Remarks | DMIN for internal applications = 70 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0056
Name
Groove/Turn Indexable Inserts
FamilyName
GIMF
BrandName
Iscar
