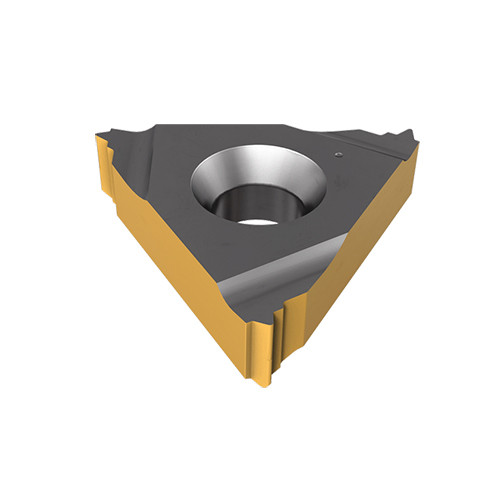

16ERB 3.50 ISO IC908
External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry.
Price: Log in For Price
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Cutting Item Count (CICT) | 1 |
| Thread Pitch (TP) | 3.5 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.51 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Profile Distance EY (PDY) | 1.3 mm |
Product Features
| Family Description | External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry. | FamilyName | ER/L-ISO |
| Remarks | For Insert Identification System, see page For threading between walls use GRIP-type inserts TIP-ISO class: 6g | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0054
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-ISO
BrandName
Iscar
