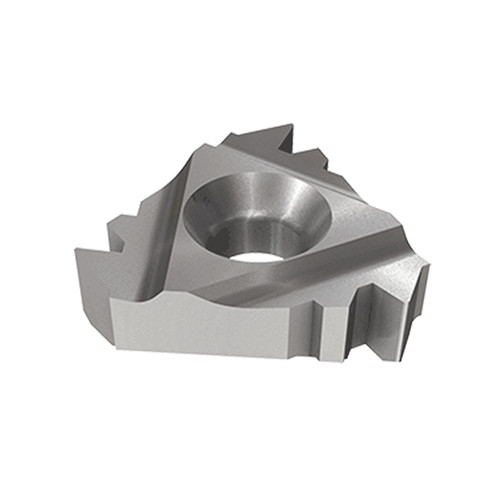

16ER 10 ABUT IC908
External American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, for high force transmission in one direction.
Price: Log in For Price
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

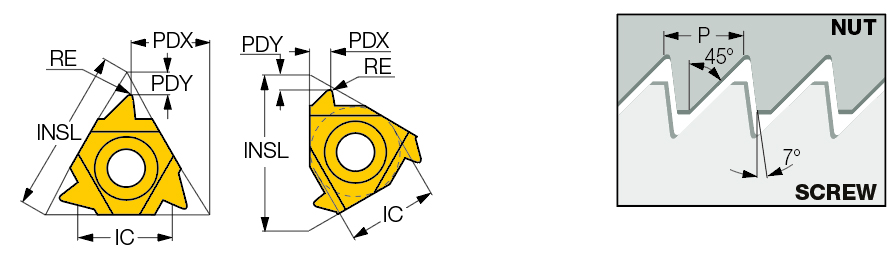

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 10 | Measurement Type | Metric |
| Corner Radius (RE) | 0.15 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | ABUT |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 1.5 mm |
| Application | | External Threading | |
Product Features
| Family Description | External American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, for high force transmission in one direction. | FamilyName | ER/L-ABUT |

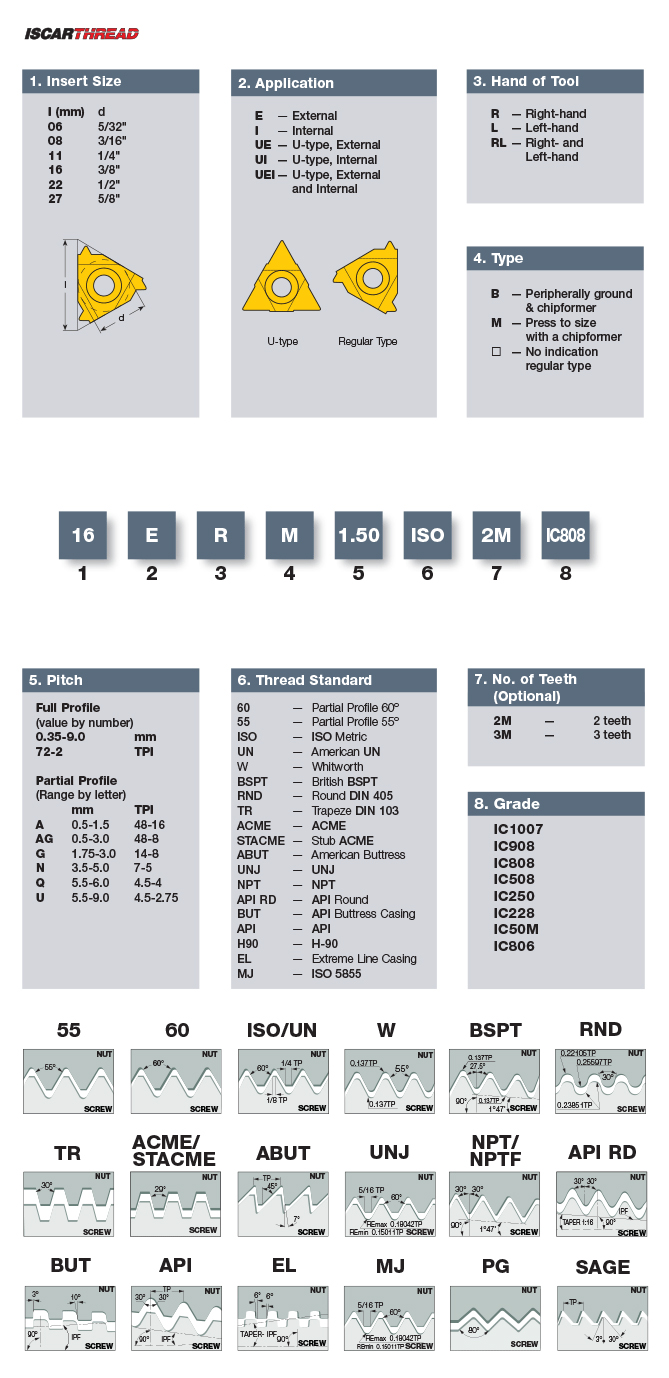

| Remarks | For Insert Identification System, click on More Info. ANSI B1.9-1973 Class 2 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0052
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-ABUT
BrandName
Iscar
