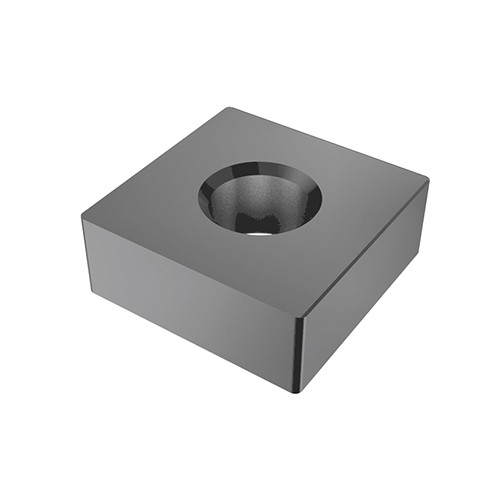

SNGA 120412 T01020 IS45
Negative square double-sided ceramic inserts for machining cast iron and hardened steel
Price: Log in For Price
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | | Min D.O.C. | 0.3 mm |
| Insert Style | SNGA | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Insert Size | 433 T0 | Max. Turning Feed (ft(max)) | 0.55 mm/rev |

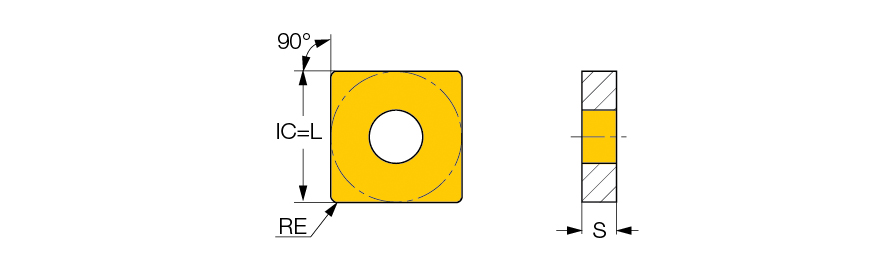

| Cutting Edge Length (L) | 12.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Cutting Edge Material | Ceramic | Unit | M |
| Grade | IS45 |
Product Features
| Family Description | Negative square double-sided ceramic inserts for machining cast iron and hardened steel | FamilyName | SNGA (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0043
Name
Turning Indexable Inserts
FamilyName
SNGA (CER)
BrandName
Iscar
