RPGX 060400 E004 IS05
Positive round ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys
Price: Log in For Price

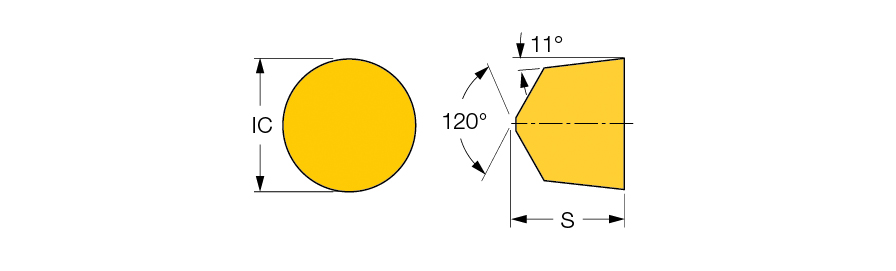

| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.2 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 1.5 mm |
| Insert Size | 23 E02 | Min. Turning Feed (ft(min)) | 0.04 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Grade | IS05 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive round ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys | FamilyName | RPGX (CER) |
| Remarks | Tools can be supplied on request. For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0031
Name
Turning Indexable Inserts
FamilyName
RPGX (CER)
BrandName
Iscar
Related Documentation
