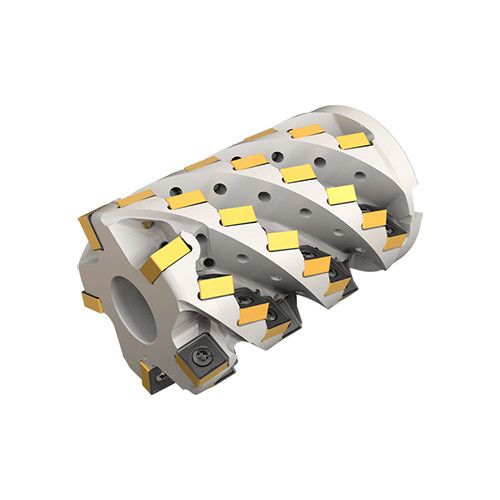

S890 SM D2.5-2.8-4-100-13
Extended flute cutters carrying double-sided square inserts with 8 cutting edges
Price: Log in For Price

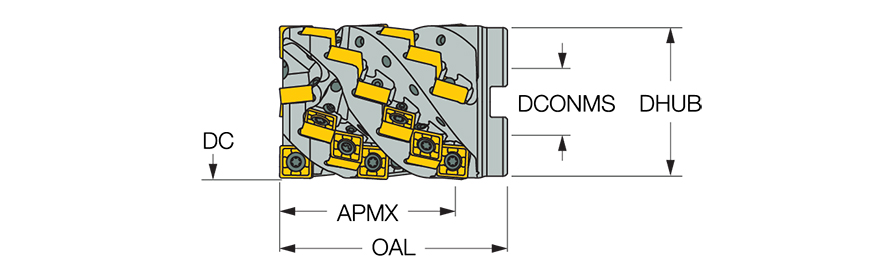

| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 28 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 2.8″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 2-1/2″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Flute Count (NOF) | 4 | Hub Diameter (DHUB) | 2.41″ |
| Overall Length (OAL) | 3.55″ | Unit | I |
| Master Insert Identification (MIID) | S890 SNMU 130608 |
Product Features
| Family Description | Extended flute cutters carrying double-sided square inserts with 8 cutting edges | FamilyName | S890 SM |
| Remarks | When using inserts with a corner radius of above 0.126, the pockets in the first row of the tool body should be modified to accommodate larger insert corners. For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.1217
Name
Shell Mills
FamilyName
S890 SM
BrandName
Iscar
