CCGW 060202F L-L ID8

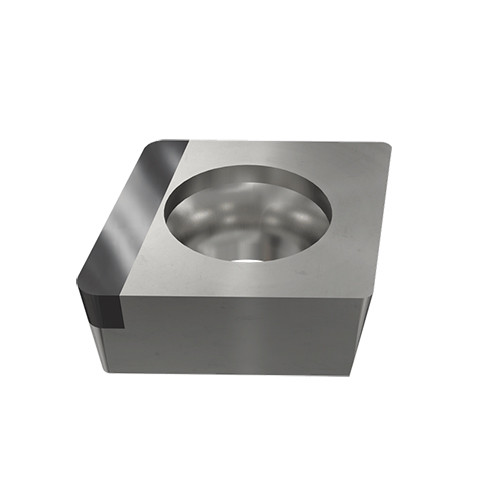

Positive 80° rhombic inserts with full-edge PCD tips (right or left hand), used for finishing aluminum and other non-ferrous materials.
Price: Log in For Price
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.2 mm | Min D.O.C. | 0.05 mm |
| Insert Size | 21.50. | Depth of Cut Maximum (APMX) | 6.3 mm |
| Cutting Edge Length (L) | 6.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Grade | ID8 | Unit | M |
Product Features
| Family Description | Positive 80° rhombic inserts with full-edge PCD tips (right or left hand), used for finishing aluminum and other non-ferrous materials. | FamilyName | CCGW R/L-L (PCD) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
CCGW R/L-L (PCD)
BrandName
Iscar
