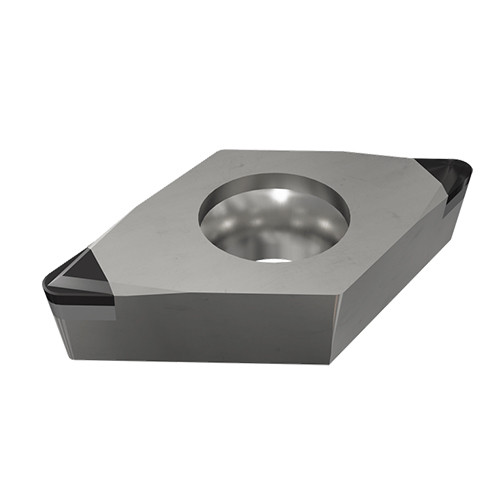

DCGW 11T308S-2MT MM BI25H
Positive 55° rhombic inserts with 2 MM chipbreaking CBN mini tips for hardened steel and cast iron
Price: Log in For Price
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Tool Type | Turn Positive Inserts |
| Insert Style | DCGW | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.4 mm |
| Insert Size | 32.52S | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.97 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
| Grade | BI25H |
Product Features
| Family Description | Positive 55° rhombic inserts with 2 MM chipbreaking CBN mini tips for hardened steel and cast iron | FamilyName | DCGW 2MT MM (CBN) |
| COO | Germany | BrandName | Iscar |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
DCGW 2MT MM (CBN)
BrandName
Iscar
