| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 21.50S | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Grade | BI05HC | Unit | M |
| Tool Type | Turn Positive Inserts |
Product Features

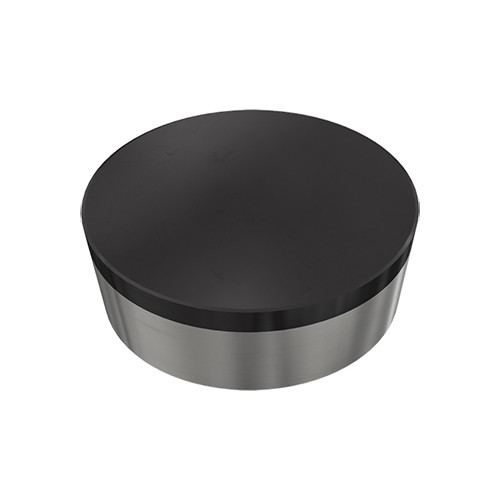

| Family Description | Positive round type half solid top CBN inserts | FamilyName | RPGN HS (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
RPGN HS (CBN)
BrandName
Iscar
