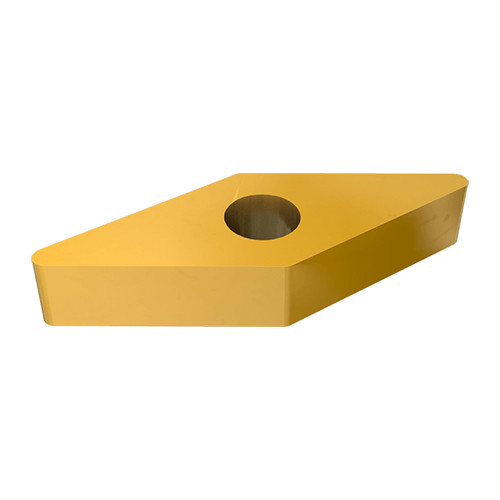

VNGA 160404 T01020 IN6
Negative 35° rhombic double-sided ceramic inserts for machining cast iron, cast iron and heat resistant alloys.
Price: Log in For Price
| Applicable Material | | Cast Iron | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.1 mm |
| Insert Style | VNGA | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 331 T0 | Max. Turning Feed (ft(max)) | 0.34 mm/rev |

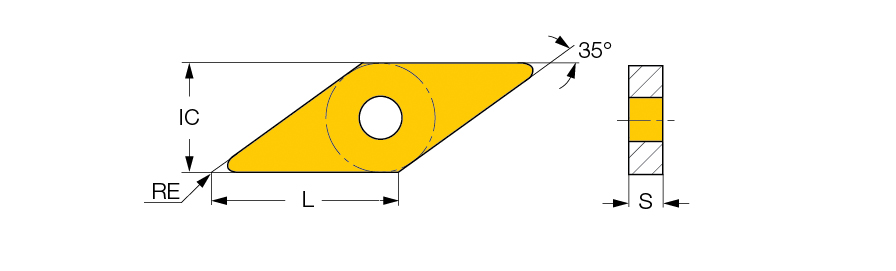

| Cutting Edge Length (L) | 16.6 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IN6 | Unit | M |
Product Features
| Family Description | Negative 35° rhombic double-sided ceramic inserts for machining cast iron, cast iron and heat resistant alloys. | FamilyName | VNGA (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0082
Name
Turning Indexable Inserts
FamilyName
VNGA (CER)
BrandName
Iscar
