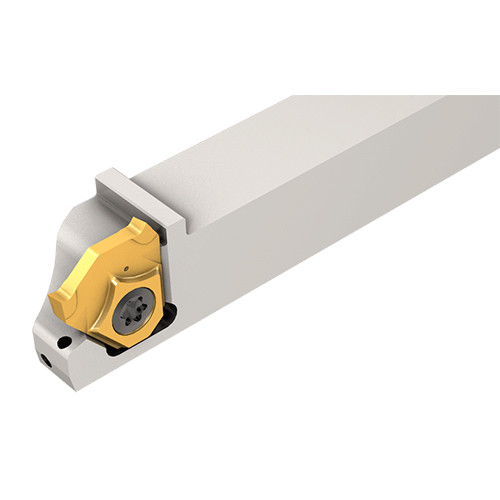

TGVR 9.5-JHP
Grooving, parting and recessing tools carrying TGV inserts with channels for high-pressure coolant.
Price: Log in For Price
| Shank Height (H) | 0.374″ | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 0.374″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Minimum (CWN) | 0.013″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.079″ | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Overall Length (OAL) | 4.921″ | Head Bottom Offset Height (HBH) | 0.098″ |
| Head Length (LH) | 0.63″ | Tool Assembly Length (LTA) | 1.024″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Grooving, parting and recessing tools carrying TGV inserts with channels for high-pressure coolant. | FamilyName | TGVR/L-JHP |
| Remarks | For more details click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2690
Name
Parting Off Indexable Holders
FamilyName
TGVR/L-JHP
BrandName
Iscar
