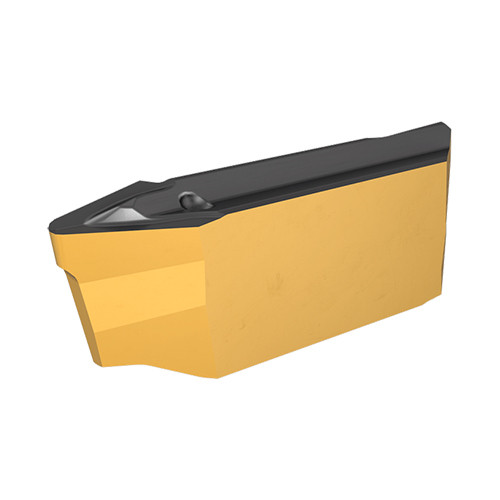

GIVL 302-F1M-12P IC808
Double-edged groove-turn inserts for back turning, undercutting and profiling.
Price: Log in For Price

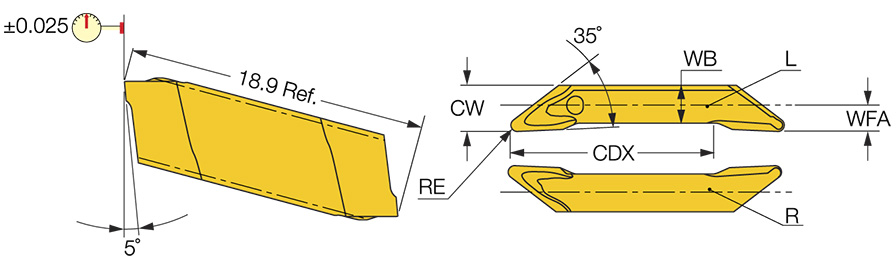

| Cutting Width (CW) | 2.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Chip Breaker Type | F1M |
| Cutting Depth Maximum (CDX) | 12.8 mm | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC808 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Ext. Back Turning | Ext. Profiling | Ext. Undercut | |
Product Features
| Family Description | Double-edged groove-turn inserts for back turning, undercutting and profiling. | FamilyName | GIVR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0040
Name
Groove/Turn Indexable Inserts
FamilyName
GIVR/L
BrandName
Iscar
