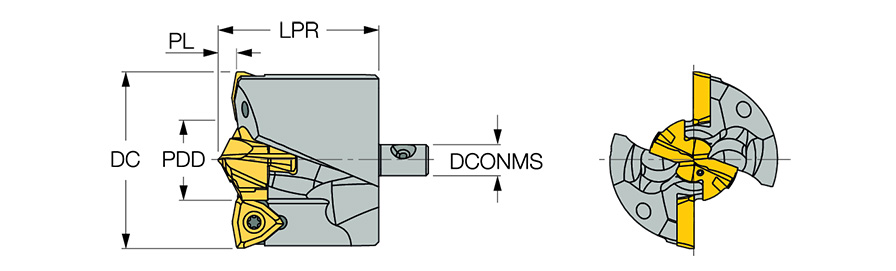

| Cutting Diameter (DC) | 37 mm | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 179-MNC 4F |
| Connection Diameter Machine Side (DCONMS) | 6.9 mm | Point Length (PL) | 4.6 mm |
| Insert Seat Size Code (SSC) | 20.0 | Body Material | Steel |
| Protruding Length (LPR) | 35 mm | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

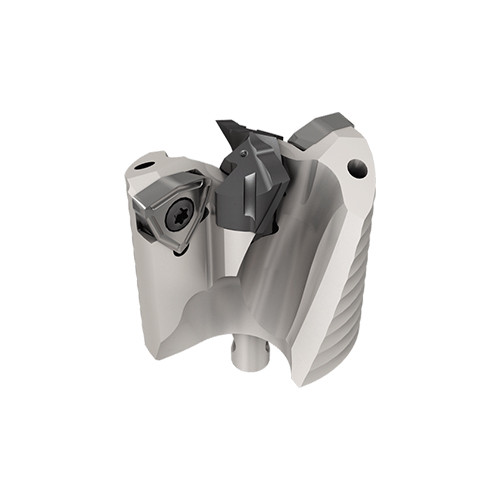

| Family Description | Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Shipping Info
Weight per item
0.2240
