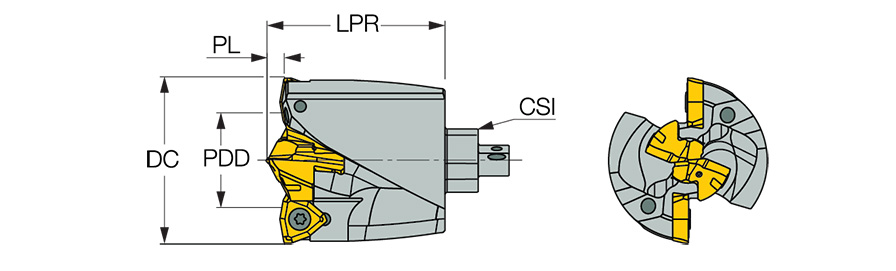

| Cutting Diameter (DC) | 38 mm | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 189-MNC 4F |
| Insert Seat Size Code (SSC) | 6 | Point Length (PL) | 4.6 mm |
| Protruding Length (LPR) | 38 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features

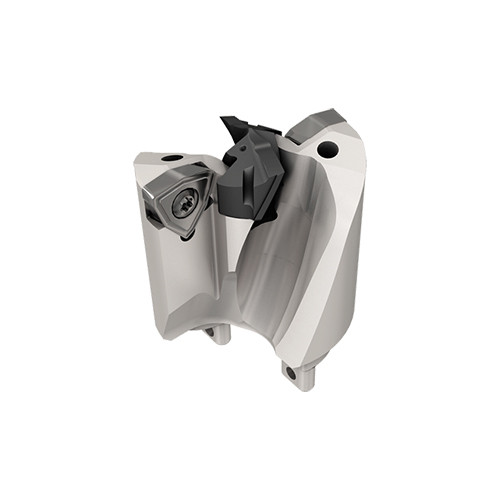

| Family Description | Exchangeable drilling heads with IMH connection, carrying SUMOC-HAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Shipping Info
Weight per item
0.2560
