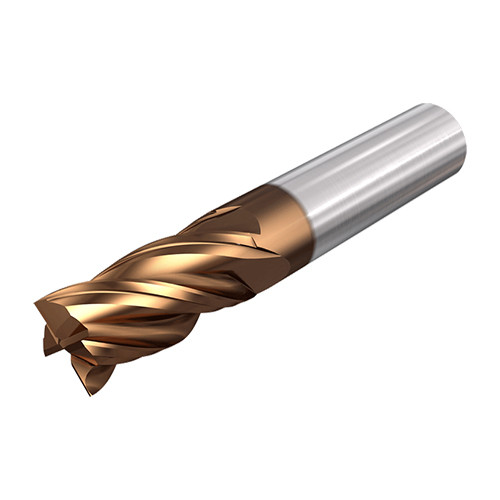

EC-E4M 16-32C16CFR2-100 IC608
4 flute endmills with 38° helix, variable pitch for chatter free roughing and finishing operations. High material removal rates. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 2XD
Price: Log in For Price

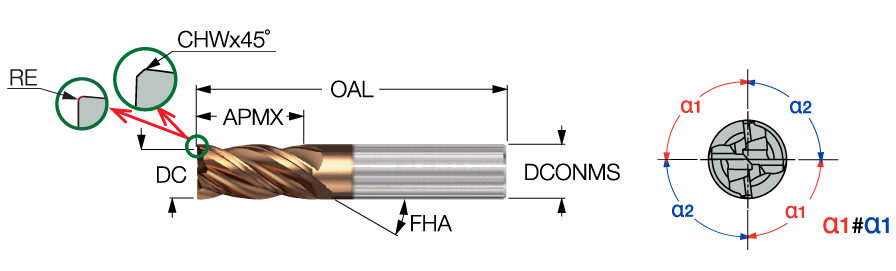

| Cutting Diameter (DC) | 16 mm | Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Radius (RE) | 2 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 100 mm | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiCrSiN | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | 4 flute endmills with 38° helix, variable pitch for chatter free roughing and finishing operations. High material removal rates. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 2XD | FamilyName | EC-E4M-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2520
Name
Square & Corner Radius End Mills
FamilyName
EC-E4M-CF
BrandName
Iscar
