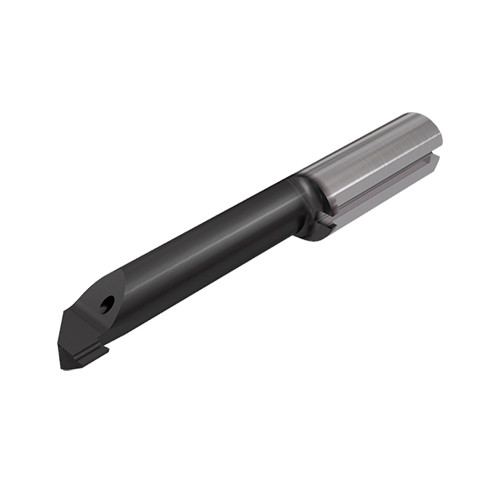

PICJ RG07D30R00-10 IC908
Inserts with inner coolant channel for grooving and turning, Dmin 4 mm
Price: Log in For Price

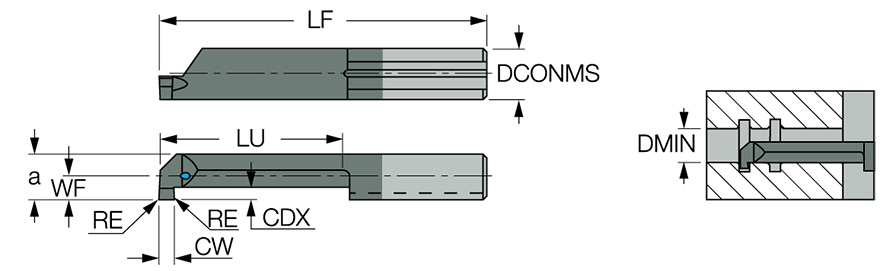

| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | IC908 |
| Corner Radius (RE) | 0 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Width (CW) | 0.7 mm | Tool Type | Solid Carbide Turn Tool |
| Cutting Depth Maximum (CDX) | 0.6 mm | Minimum Bore Diameter (DMIN) | 3 mm |
| Overall Length (OAL) | 24 mm | Front End Width (a) | 2.7 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Inserts with inner coolant channel for grooving and turning, Dmin 4 mm | FamilyName | PICJ R/LG |
| Remarks | All carbide bars with sharp corners Specify right- or left-hand bars PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0060
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICJ R/LG
BrandName
Iscar
