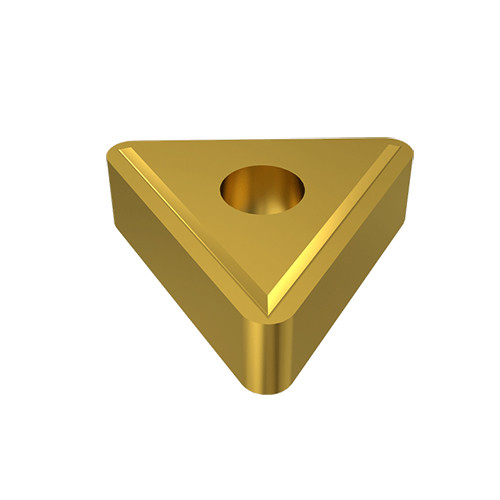

TNGG 160416Z01030AG IN16C
Negative 60° triangular ceramic inserts with a chipbreaker for machining hardened steel and cast iron
Price: Log in For Price
| Applicable Material | | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.3 mm |
| Insert Style | TNGG | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 1.6 mm | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Insert Size | 334 Z0 | Max. Turning Feed (ft(max)) | 0.36 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.53 mm | Body Material | Carbide |
| Cutting Edge Material | Ceramic | Unit | M |
| Grade | IN16C |
Product Features
| Family Description | Negative 60° triangular ceramic inserts with a chipbreaker for machining hardened steel and cast iron | FamilyName | TNGG (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0042
Name
Turning Indexable Inserts
FamilyName
TNGG (CER)
BrandName
Iscar
