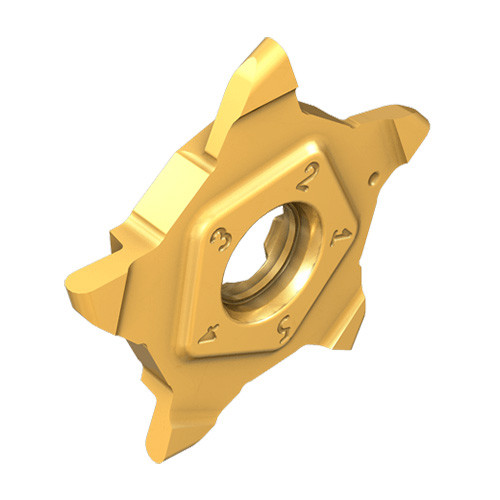

PENTA 24N157NF079RSSL IC808G
Precision grooving inserts with 5 cutting edges for quick and accurate cutting edge indexing.
Price: Log in For Price
| Cutting Width (CW) | 1.57 mm | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.79 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Cutting Depth Maximum (CDX) | 3 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808G | Body Material | Carbide |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | | Unit | M |
Product Features
| Family Description | Precision grooving inserts with 5 cutting edges for quick and accurate cutting edge indexing. | FamilyName | PENTA 24N-NF-RSSL (full radius) |
| Remarks | Recessing is possible only with 2.39 mm and wider inserts. For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0012
Name
Parting Off Indexable Inserts
FamilyName
PENTA 24N-NF-RSSL (full radius)
BrandName
Iscar
