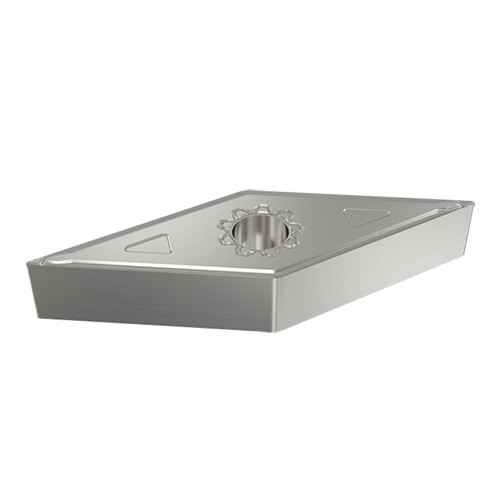

VNMG 160404-F3S IC804
Double-sided 35° rhombic inserts for titanium and heat resistant materials for finishing applications
Price: Log in For Price
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.1 mm |

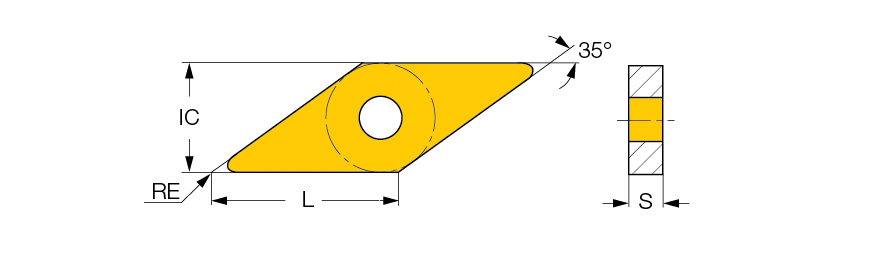

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Insert Size | 331-F3 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 12.4 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 7.15 mm | Chip Breaker Type | F3S |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC804 | Unit | M |
Product Features
| Family Description | Double-sided 35° rhombic inserts for titanium and heat resistant materials for finishing applications | FamilyName | VNMG-F3S |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0130
Name
Turning Indexable Inserts
FamilyName
VNMG-F3S
BrandName
Iscar
